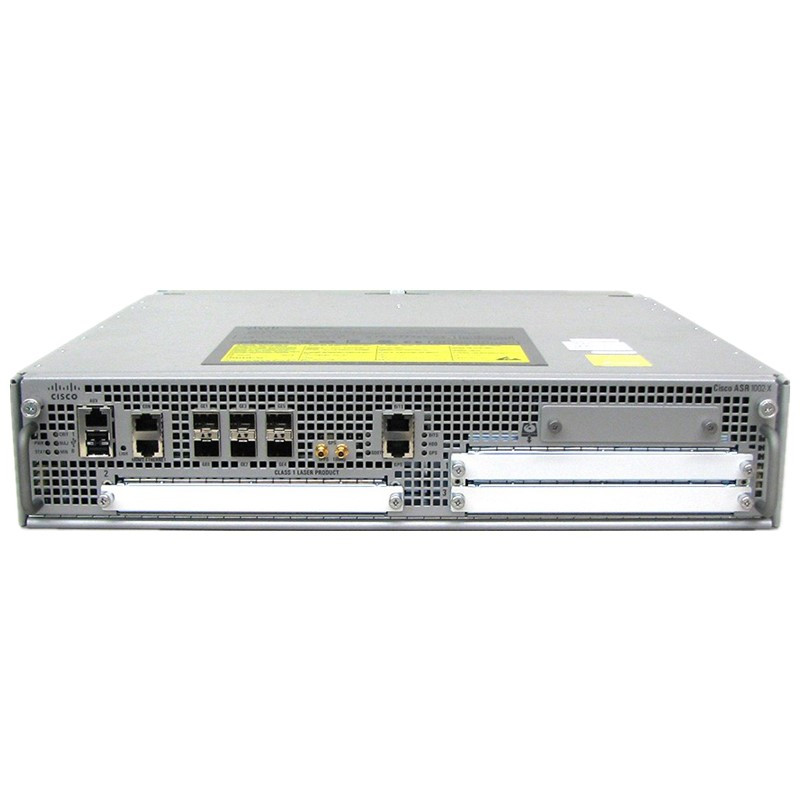

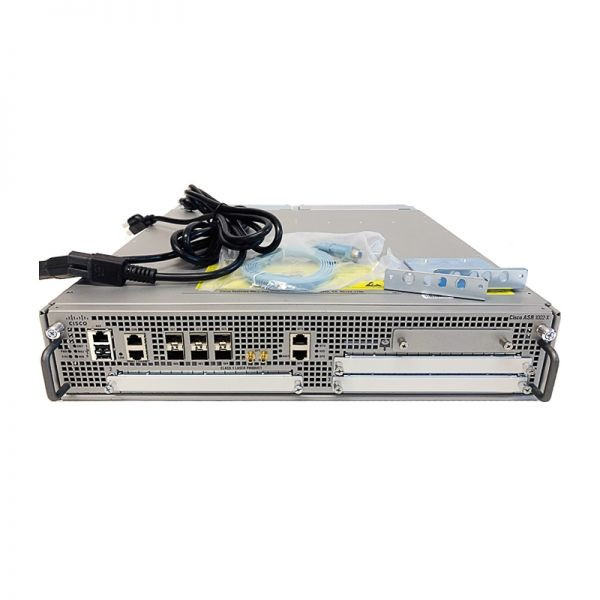

Cisco ASR 1002-X router is delivered into 2 rack unit chassis, the route processor for control plane embedded the services processor for data plane traffic as well as the carrier card which is designed to house I/O modules, share port adopters all integrated in the chassis. ASR 1002-X router comes with 6 build-in SFP ports and 3 box slots for I/O connectivity. The integrated embedded service processors offer 4 levels of system performance: 5Gbps which is default, 10, 20, 36Gbps all through software license upgrade without need for any additional hardware. The integrated the route processor comes by default with 4Gb DRAM, upgradeable to 8, 16Gb.

This ASR1002-X is similar with the ASR1002-X=.  The ASR1002-X= is a spare one.

Product Code

Cisco ASR 1002-X

Rack Height

2RU

System Bandwidth

5G (default) / 10G, 20G,36G (upgrade)

Router Processor (RP)

Dual-core 2.13Ghz processor

Build-in Gigabit Ethernet port

6 x SFP ports

Redundancy

Software (license purchase separately)

Cisco ASR 1000 Series ESP

1 ESP slot

SIP and Ethernet line card

Integrated ASR 1000-SIP10, not upgradable

Rack-mounting

19-inch

DRAM Memory

4GB-shared across RP, ESP, and SIP

Flash Memory

8 GB

Shared port adapters

3 SPA slots

External USB flash memory

4-GB USB flash-memory support
